PyQT6&Pyside6

<p>考虑用python来做desktop GUI</p>

ModelView

作者: n5321

需求:As you start to build more complex applications with PyQt6 you’ll likely come across issues keeping widgets in sync with your data.

ModelViews are a powerful alternative to the standard display widgets, which use a standardized model interface to interact with data sources — from simple data structures to external databases.

Table, list and tree widgets are components frequently used in GUIs.

The second approach is model/view programming, in which widgets do not maintain internal data containers. They access external data through a standardized interface and therefore avoid data duplication.

widget跟data的decouple!

Model/View is a technology used to separate data from views in widgets that handle data sets. 我使用GUIDE的方式,最烦的就是这个问题。

Standard widgets use data that is part of the widget.

View classes operate on external data (the model)

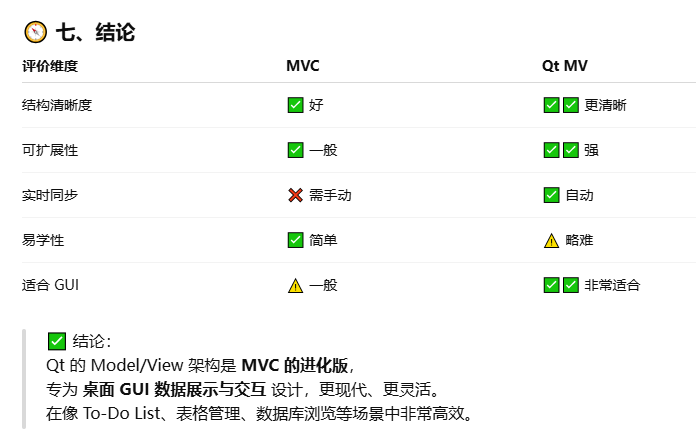

MVC的架构是很熟悉的! In Qt land the distinction between the View & Controller gets a little murky.

in Qt-speak the View and Controller are instead merged together creating a Model/ViewController architecture — called "Model View" for simplicity


you need to provide a wrapper to make your data conform to the QAbstractItemModel interface.



完了!又要耗时间了!

The .ui file was converted to a Python file as described previously using the command-line tool!

试用了qt designer,生成.ui文档,是matlab figure文档的平行竞品!同样的logic!这个看起来好像要灵魂一些!另外一点是他可以用纯粹的code来生成页面!有不一样的点!

ui file 通过cmd 生成py file!在generate idea的时候有价值!

 优点

  1. 快速迭代界面

    • 不需要每次修改 .ui 文件都重新生成 Python 文件

    • 修改完界面直接运行程序即可看到效果

  2. 减少生成文件

    • 项目中不需要大量 *_ui.py 文件

    • 对小型或快速原型项目非常方便

  3. 动态选择界面

    • 可以根据用户配置或条件选择不同的 .ui 文件加载不同界面



2️⃣ 推荐的桌面应用开发流程(MV / MVC 风格)

  1. 设计 View(UI)

    • 用 Qt Designer 设计 .ui 文件

    • 布局控件、设置大小、文本、图标等

    • 可以生成 Python 文件或动态加载

  2. 定义 Model(数据层)

    • 定义数据结构、业务逻辑

    • 在 PyQt6 中,可以用 QAbstractListModel / QAbstractTableModel 设计数据接口

  3. 实现 Controller / 逻辑

    • 连接 View 与 Model

    • 绑定信号槽,处理用户操作、更新数据、刷新界面

  4. 测试和迭代

    • 运行程序,检查交互、布局、功能是否符合预期

    • 调整 UI 或逻辑


We define our custom model by subclassing from a base implementation, allowing us to focus on the parts unique to our model.

集成default class!
